| Cab |
Cab |
| Front Axle |
MFWD w/ Suspension |
| Transmission |
IVT |
| Guidance-ready |
Yes |
| Rear PTO |
1000 |
| Rear Tires |
Duals |
| Tire Width |
Narrow |
| AutoPowr Infinitely Variable Transmission (IVT) 42 km/h (26 mph) |

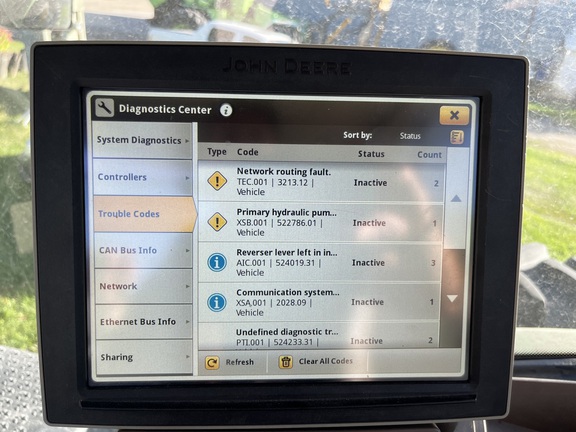

| 4600 CommandCenter with Extended Monitor |
| John Deere ActiveCommand Steering (ACS) |
| 4600 Processor |

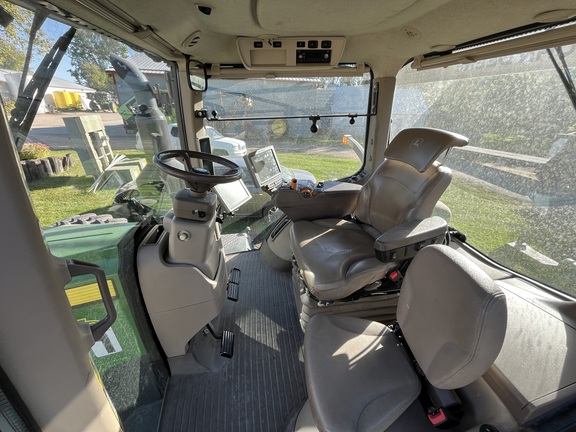

| Premium CommandView III Cab with ActiveSeat |
| Premium Radio Package |
| Right-hand Reverser Linear-Type Transmission Controls |
| John Deere PowerTech 9.0 L (549 cu. in.) 6 Cylinder Tier 4/Stage V Compliant Diesel Engine |
| 321 L/min (85 gpm) Dual Hydraulic Pump |
| Six Premium Rear Remote SCVs with Electrohydraulic (EH) Controls, Premium Couplers, and High Pressure Relief Levers |
| 45 mm (1-3/4 in.) 1,000 rpm and 1,000 Economy rpm PTO, electronically shiftable in cab |
| 6,803 kg (15,000 lb) capacity 3-Point Hitch (Cat 4N/3) Hitch with Sway Blocks and Quik-Coupler |
| Category 4 adjustable Swinging Drawbar with 50 mm (2 in.) Pin with heavy duty support |
| 120 mm (4.72 in.) diameter by 3010 mm (118.5 in.) length with Double Taper Wheel Hubs |

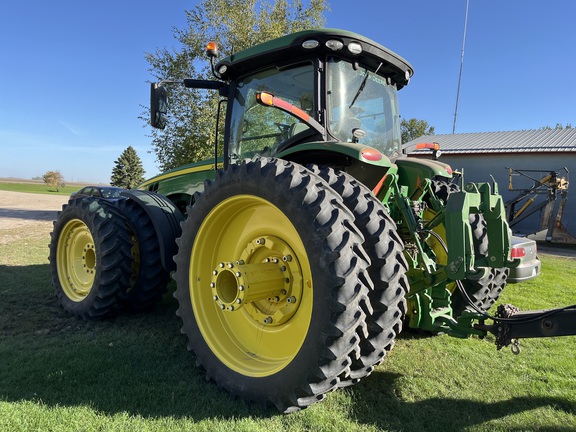

| 380/90R54 152A8 R1W Radial in Dual Wheel Configuration |
| ILS with hydraulic differential lock, fully-enclosed driveline and Group 48 Rear Tires |
| 380/80R38 142A8 R1W Radial in Dual Wheel Configuration - Eight Position |
| Premium Lighting |
| Fenders, Pivoting Front - 480 mm (18.9 in.) Wide |
| Ethernet Switch |
| Leather Comfort Package |
| Intelligent Power Management |
| Outside Mirrors - Power Telescoping, Heated, Electrically Adjustable Right-hand and Left-hand |
| Antenna Mount and Wiring for Business Band (2-Way) Radio |
| Cold Weather Start Kit |
| Auxiliary Hydraulic Connections - 1/2 in. |
| Second Rotary Beacon Light |
| Battery Disconnect |
| 4309 kg (9500 lb) Ballast Package with Rear Duals |
