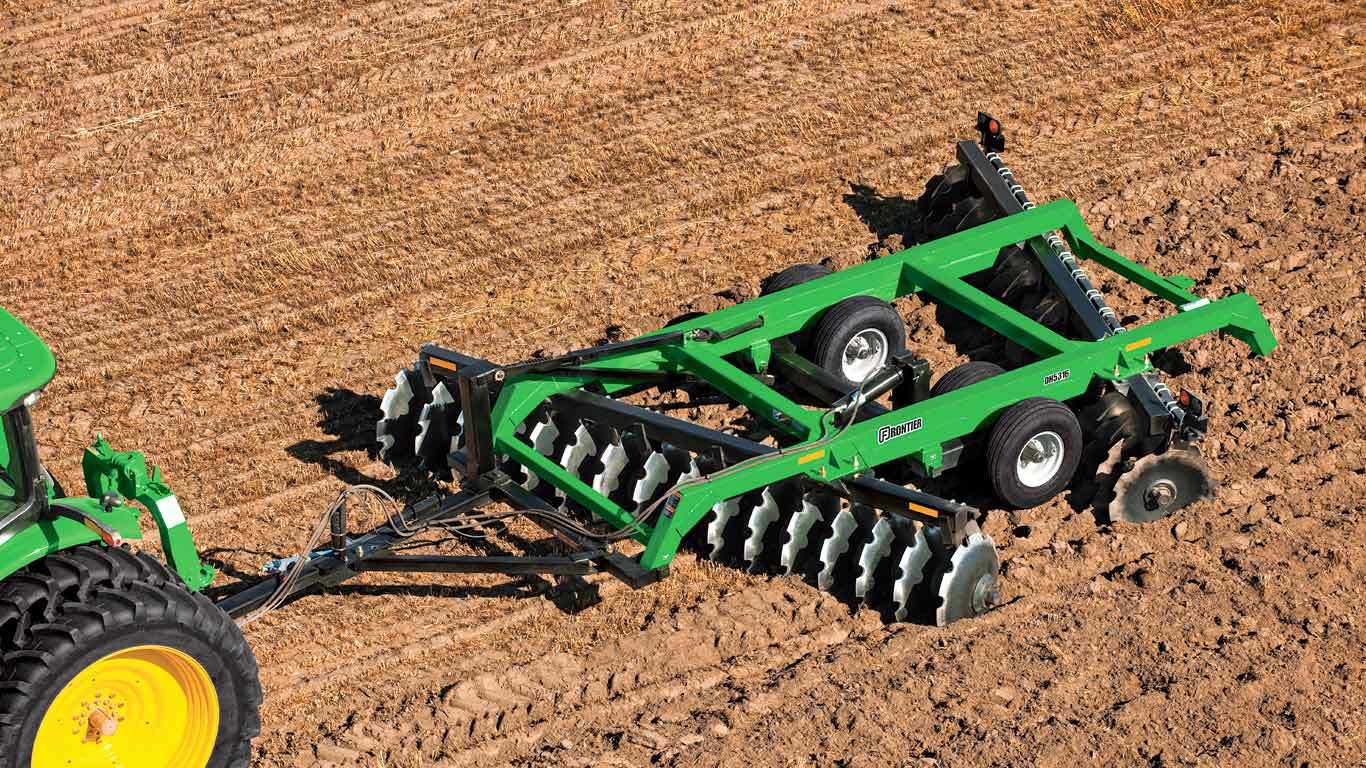

New DH53 Series Offset Disks

Scrapers clean disk blades

Scrapers work great in wet and sticky soils

Adjustable disk blade scrapers keep disk blades clean and performing in wet and sticky soils for increased productivity.

Clevis hitch makes hookup easy

Clevis hitch is built strong for tough jobs

The clevis hitch has a durable design and is designed for ease of use, long life, and tough working conditions.

Available in notched disk blades for front and rear

Notched disk blades available in three sizes

Disk blades on the DH53 Series Offset Disks are available in 71.1-cm, 76.2-cm, or 81.3-cm (28-in., 30-in, or 32-in.) diameter. The weight per blade on these disks ranges from 152.9 kg to 241.8 kg (337 lb to 533 lb) for superior penetration in tough soil conditions.

Only notched disk blades for front and rear are available on the DH53 Series models.

Keeping gangs tightened increases wear life

Gang nut wrenches are always there when needed

End washers help keep the gang shaft end nut tightened during operation, increasing gang wear life.

Two gang nut wrenches are supplied with each unit and securely attached to the unit, ready to use when the gangs need tightening.

Minimal maintenance increases work hours

Sealed with industrial-grade seals

Oil bath tapered roller bearings, sealed with industrial-grade seals, keep maintenance to a minimum and profitable working hours at a maximum. The bearings come complete with a wear plate.

Allows operator to pull an additional implement

A rear hitch is available for operators wanting to pull an additional implement such as a harrow or drag.

Transport locks secure disk wings cylinder

Transport locks are standard, ensuring disk wings are in secure transport mode.

Control arms level in ground and during transport

Easy to set for desired soil condition

Two separate control arms are standard, one for transport leveling and one for leveling while the disk is in the ground. Once set for a given soil condition, the disk will continue to perform with consistency.
