Key Features
- Adjustable height clevis hitch
- Hydraulic lift 3-point hitch
- Ribbed tires for smooth ride
Features
Hitch matches the caddy to the tractor drawbar height

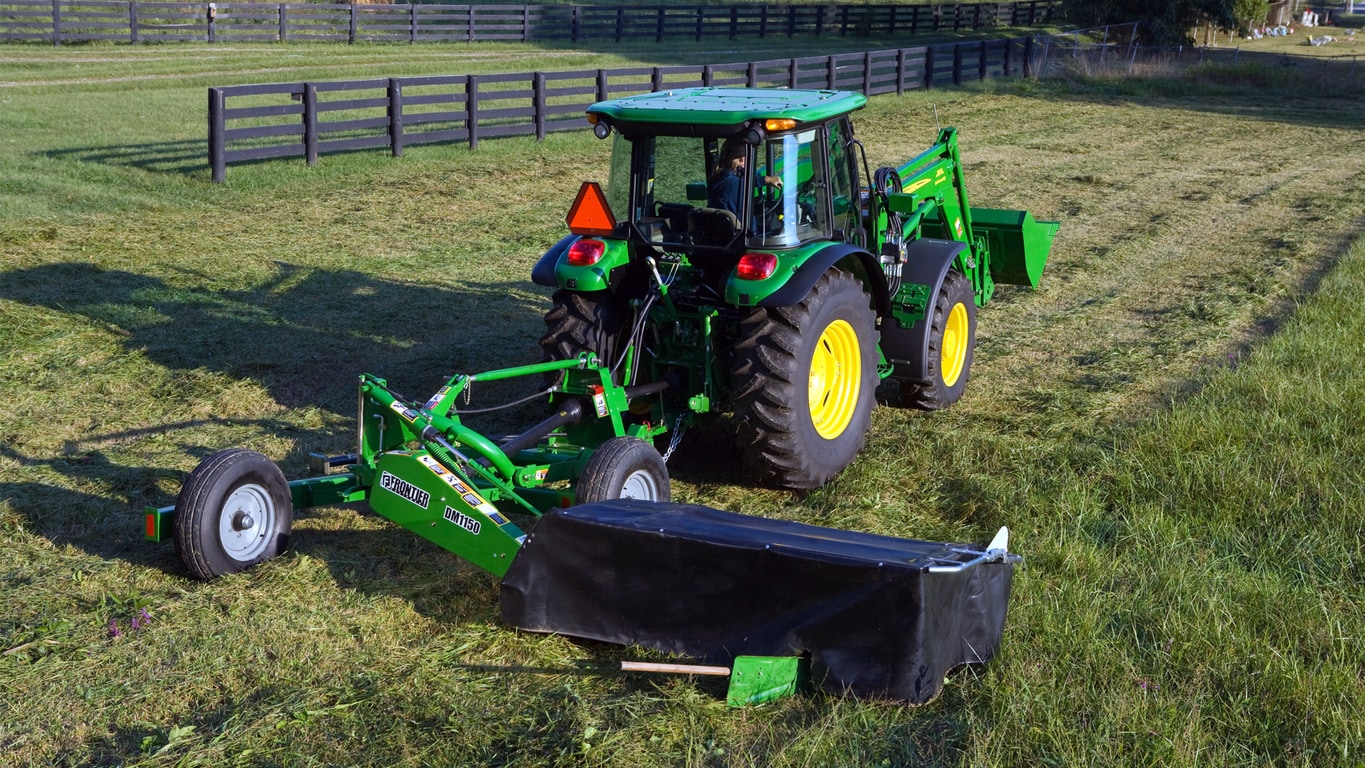

The DC1000 Series Disc Mower Caddy is standard equipped with an adjustable clevis tongue to perfectly match the implement to the tractor drawbar height.
DC1000 Series Disc Mower Caddy 3-point hitch
The standard hydraulic lift 3-point hitch, which includes a cylinder, hoses, and tips, make raising and lowering the DC1000 Series Disc Mower Caddy a simple task.
Weights allow for variable integrated ballasting
The DC1000 Disc Mower Caddy utilizes standard John Deere weights to allow for a variable integrated ballasting system.
Durable 11L x 15SL ribbed implement tires
The DC1000 Disc Mower Caddy runs on durable 11L x 15SL ribbed implement tires that provide a smooth ride over even the toughest terrain.
Promotions
Dimensions
| Transport height | 1.1 m 3.6 ft |
| Transport width | 2.1 m 6.9 ft |
| Transport length | 3.6 m 11.67 ft |
| Transport clearance | 0.26 m 10.5 in. |
| Maximum compatible disc mower cutting width | 3.1 m 10.17 ft, in. |
Weight
| Base machine | 719 kg 1,580 lb |
| Fully ballasted machine | 916 kg 2,020 lb |
| Maximum compatible disc mower | 645 kg 1,421 lb |
| Shipping | 818 kg 1,803 lb |
Tractor compatibility
| Minimum horsepower | 11.2 kW 15 hp |
| PTO speed | 540 rpm |
| PTO type | Equal angle Category 4 |
Hitch
| Front hitch type | Drawn |
| Rear hitch type | Integral - Category 2 |
Frame
| Type | Tubular: 10x15 cm 4x6 in. |
Ballasting
| Internal ballasting | Standard |
| External ballasting | Up to 10 suitcase weights |
Tires
| Hubs | 6 - Bolt |
| Type | Ribbed implement |
| Size | 11L x 15SL |
Lighting and safety
| Transport lights | |
| Safety chain | Standard |
| Safety guards | Standard |
| Markings | SMV |
| Jack type | Screw-adjustment |
Set-up time
| Labor hours | 3 hours |
Warranty
| Time period | 1 year |
Additional information
| Date collected |
