Key Features
- Rubber edge is reversible and replaceable
- Optional bolt-on back drag for tight areas
- Attachment carrier removes quickly and easily
- See brochure for loader series compatibility
Features

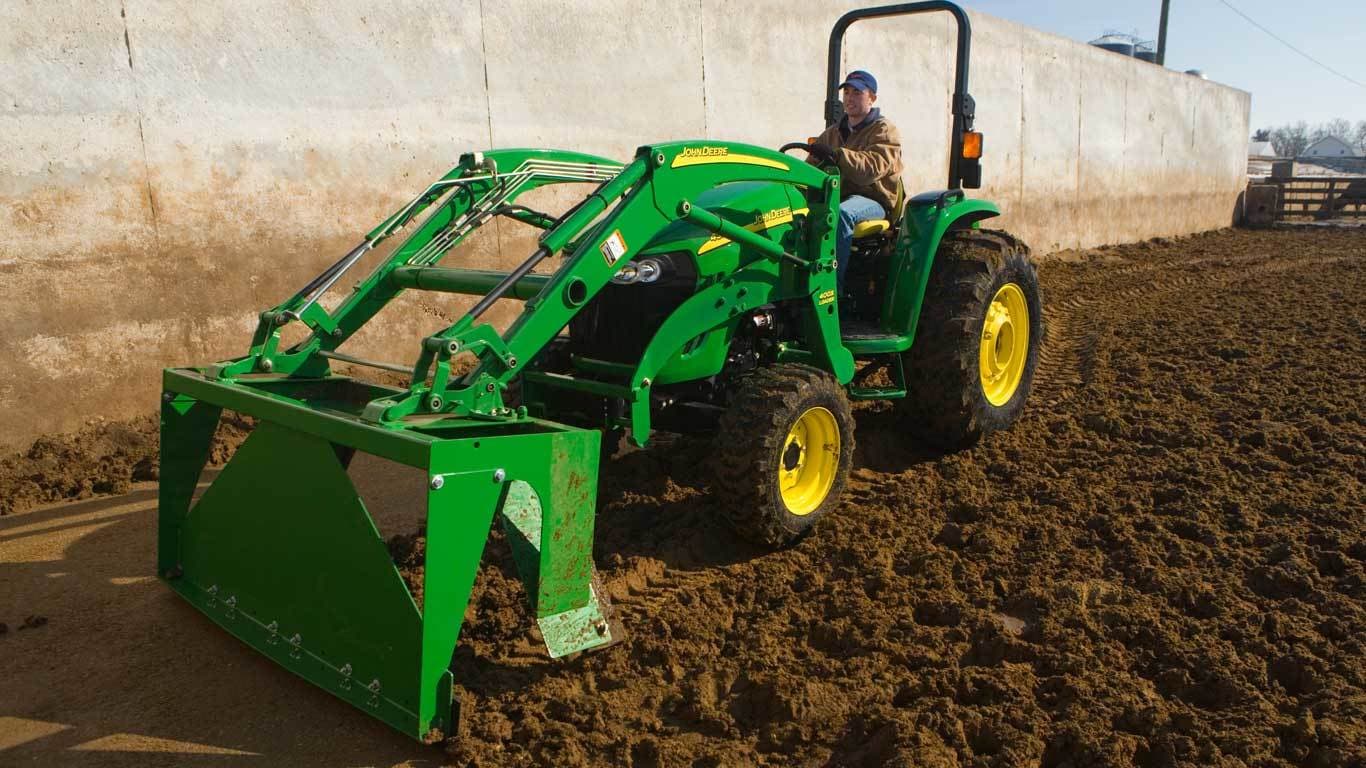

AE11E Series Free-Stall Scraper
The attachment carrier on the AE11E Series Free-Stall Scraper is designed to allow fast, easy removal and mounting of attachments without tools.
AE11E Series Free-Stall Scraper rubber edge
The AE11E Series Free-Stall Scraper has a reversible and replaceable rubber edge for extended life and easy replacement.
AE11E Series Free-Stall Scraper back drag
With the optional bolt-on back drag for the Frontier AE11E Series Free-Stall Scraper, getting into tight areas is a snap. The back drag helps get to those hard-to-reach areas for a thorough cleaning.
Bolt-on back drag is perfect for tight areas
The bolt-on back drag attachment allows operators to rotate the AE11 Series Free-Stall Scraper forward and move material away from a wall, obstacle, or other hard-to-reach areas.
The pullback assembly does not need to be removed to obtain maximum production of the free-stall scraper.
The field-installed bolt-on back drag attachments come in a variety of sizes for the free-stall scrapers.
Dimensions
| Width | 243.8 cm 96 in. |
| Height | 71.1 cm 28 in. |
| Depth | 73.7 cm 29 in. |
| Cutting width | 243.8 cm 96 in. |
Attachment carrier
| Current series style | 300, 400, 500 |
Weight
| Operational | 174.6 kg 385 lb |
| Shipping | 195 kg 430 lb |
Moldboard
| Thickness | 0.6 cm 0.25 in. |
| Height | 71.1 cm 28 in. |
Skid shoes
| Available |
Set-up time
| Labor hours | 0.5 |
Warranty
| Time period | 1 year |
Additional information
| Date collected |
