Key Features
- Efficient drive system
- Double-sided knives
- iMatchTMcompatible
Features
Belt drive system

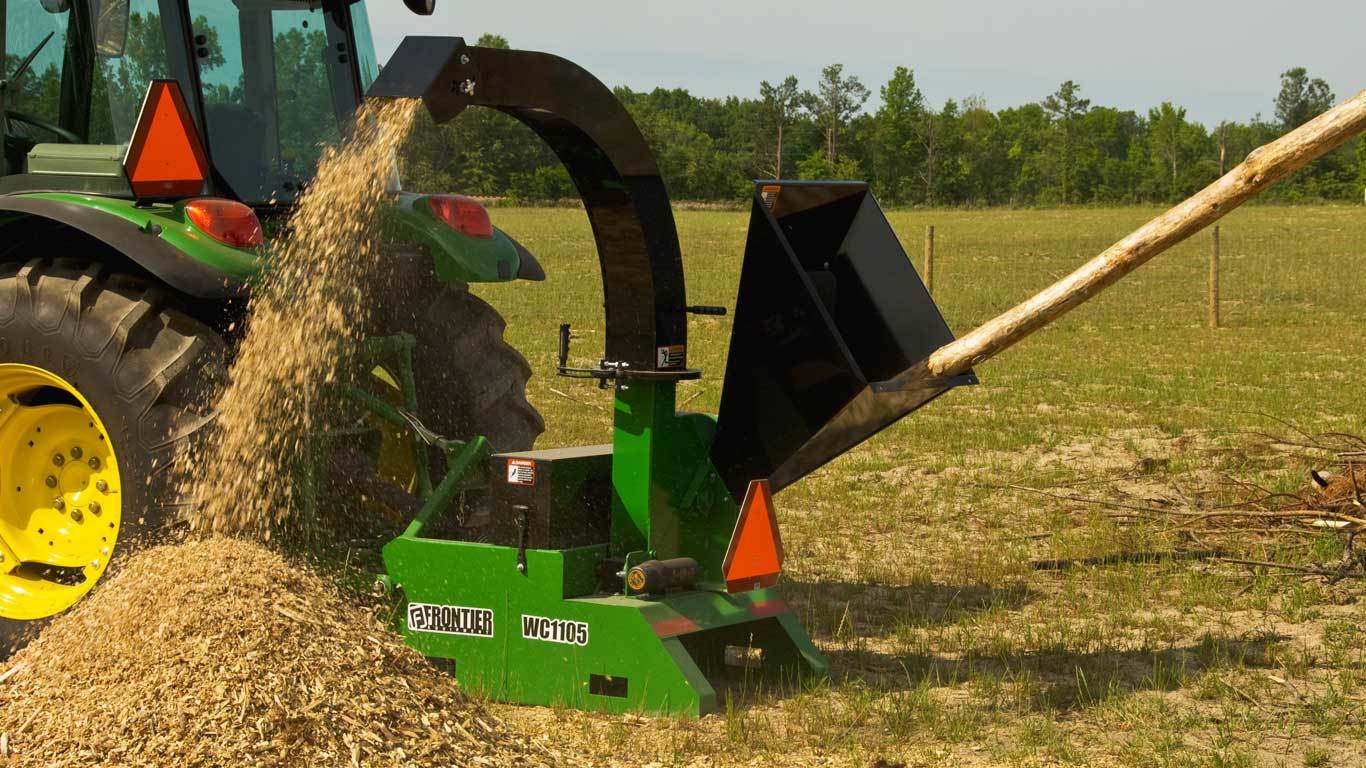

The belt drive system allows the WC11 Series Wood Chippers to operate using less horsepower while keeping the rotor rpm at a range from 1380 to 1920 rpm, depending on the model.
The WC1103 is a single belt drive, while the WC1105 has three belts.
Dimensions
| Chip opening | 76x140 mm 3x5.5 in. |
| Hopper opening | 635x457 mm 25x18 in. |
Feed options
| System | Manual (gravity) |
| Feed_x001A_roller diameter | |
| Hopper height | 965 cm 38 in. |
Chip chute
| Fixed | 2 positions |
| Adjustable |
Weights
| Unit | 170 kg 375 lb |
| Rotor style | Disc |
| Rotor | 29.5 kg 65 lb |
Tractor compatibility
| PTO rpm | 540 rpm |
| HP range (Tractor PTO hp) | 13.4-29.8 kW 18-40 hp |
3-Point hitch
| Category | Cat. 1 |
| iMatch™ or Quik-Coupler |
Hydraulics
| Requirements | |
| Self-contained system |
Chipping
| Knife quantity | Two |
| Knife size | 635x89x7.9 mm 2.5x3.5x0.3125 in. |
| Knife bolt | |
| Shear bar | Adjustable hardened anvil |
| Rotor rpm | 1920 rpm |
Belt drive system
| Number | One bx |
| Type |
Set-up time
| Labor hours | 0.5 |
Warranty
| Time period | 1 year |
Additional information
| Date collected |
