Key Features
- Widths ranging from 60 to 90-in
- Rotate a full 360 degrees with 5 forward and 5 reverse settings
- iMatchTM compatible
Features
Multiple positions for desired raking profile

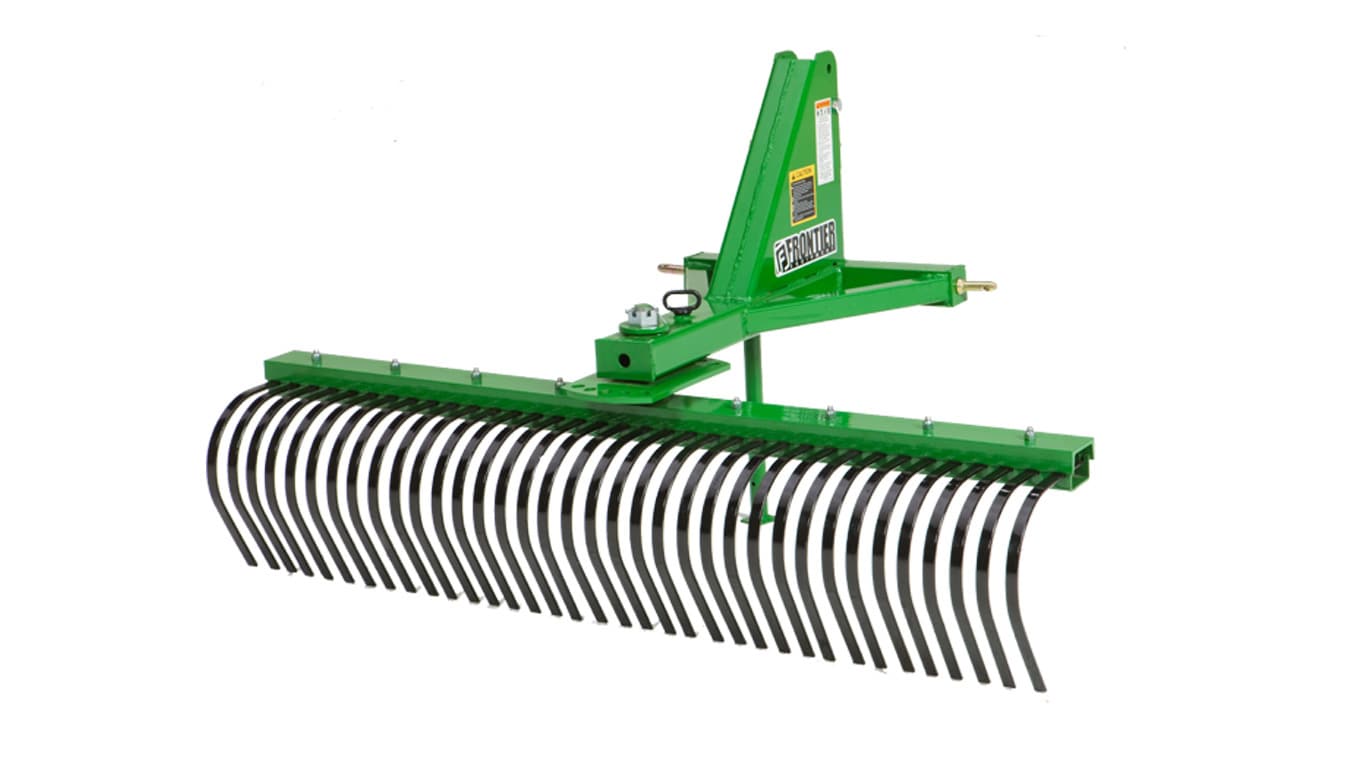

Standard-duty landscaping rake models feature high-strength, formed tine beams constructed with a slotted, bolt-in mounting system. The spring steel tines are spaced at 2.5-cm (1-in.) intervals for exceptional performance in pick-up, grooming, and material distribution. This mounting ensures positive spacing and alignment over each tine.
Tubular steel frame and angled tine beam
A strong, tubular-steel frame supports an angled tine beam for superior performance.
Hitch hookup is quick and easy
These standard-duty landscape rakes are compatible with tractors equipped with Category 1 3-point hitches and are also iMatch hitch. iMatch compatibility ensures a quick and efficient hookup.
Dimensions
| Working width | 243.8 cm 96 in. |
Weight
| Operating | 147 kg 324 lb |
| Shipping | Two units: 325.7 kg 718 lb |
Tractor compatibility
| PTO horsepower | 14.9-37.3 kW 20-50 hp |
Hitch
| Compatibility | Cat. 1 |
| iMatch™ compatible (Cat.1) | Yes |
Tines
| Quantity | 36 |
| Dimensions | 0.8x2.5 cm 0.3125x1 in. |
| Spacing | 2.54 cm 1 in. |
Raking angle
| Positions | 5 forward, 5 reverse |
| Degrees | 0, 15, 30 degree (angle) |
Pivot
| Degrees | 360 degree (angle) |
Parking stands
| Standard | Yes |
Duty
| Type | Standard |
Shipping
| Configuration |
Set-up time
| Labor hours |
Warranty
| Time period | 1 year |
Additional information
| Date collected |
