Key Features
- Adjustable discharge outlet
- See brochure for loader series compatibility
Features
Lever makes adjusting to left and right easy

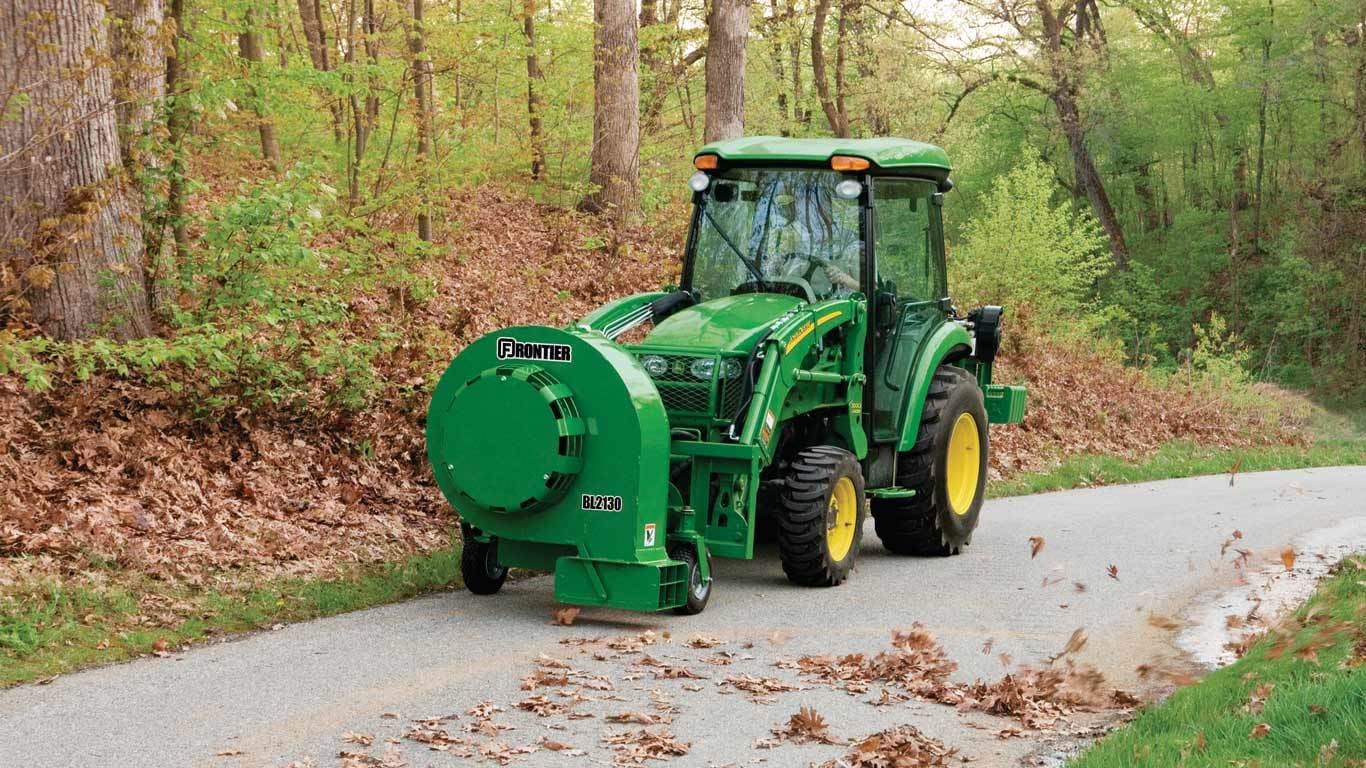

With a convenient lever, the discharge outlet is easily adjustable on Frontier™ debris blowers, allowing debris to be blown to the left or right.
Dimensions
| Machine length | 120 cm 47.125 in. |
| Machine width | 127 cm 50 in. |
| Machine height | 124 cm 48.75 in. |
| Power pack width | 97 cm 38 in. |
| Power pack, height | 132 cm 52 in. |
Weight
| Machine operating weight | 313 kg 689 lb |
| Machine shipping weight | 386 kg 850 lb |
| Power pack operating | 243 kg 535 lb |
| Power pack shipping | 243 kg 535 lb |
Tractor compatibility
| PTO, hp (minimum) | 18.6 kW 25 hp |
| PTO, rpm | 540 rpm |
| Loader, current John Deere series | 300 and 400 |
Fan
| Diameter | 75 cm 29.5 in. |
| Width | 25 cm 10 in. |
| Number of blades | 12 |
| Speed, rpm | 1,455 rpm |
| Airflow | 172 cm2 6,061 cfm |
| Air velocity | 227 km/h 141 mph 378 m/min 12,400 fpm |
Discharge/outlet
| Size | 270x168 mm 10.625x6.625 in. Squared: 72,900 mm 70 in. |
| Height off ground | 73 mm 2.875 in. |
| Location | Right and Left |
| Adjustable | Yes |
Gauge wheels
| Standard or optional | Standard |
| Material, solid or pneumatic | Semi Pneumatic |
| Location, front, rear | 1 Front and 2 Rear, swivel |
| Quantity | Three |
| Size, in. | 305x76.2 mm 12x3 in. |
| Adjustable height range |
Hydraulics For John Deere 3 Series Tractors
| Fan psi, relief valve setting | Fan bar, relief valve setting (186) 18,616 kPa 2,700 psi |
| Flow at operating pressure | 61 L/min 16 gpm |
| Operating pressure | 172 bar 2,500 psi |
| Power pack reservoir | 57 L 15 gal. |
| System capacity | 64 L 17 gal. |
Hydraulics For John Deere 4 Series Tractors
| Fan psi, relief valve setting | Fan bar, relief valve setting (207) 20,684 kPa 3,000 psi |
| Flow at operating pressure | 76 L/min 20 gpm |
| Operating pressure, | 172 bar 2,500 psi |
| Power pack reservoir | 57 L 15 gal. |
| System capacity | 64 L 17 gal. |
Construction
| Housing thickness | 10 gauge 3.4 mm 0.13 in. |
Shipping
| Configuration | Wood crate |
| Units per crate | One |
Set-up time
| Labor hours | 0.5 |
Warranty
| Time period, machine | 1 year |
Additional information
| Date collected |
